| Output | |
| Max Configurable Power (Watts) | 865 Watts / 1.5kVA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 10 ms typical : 12 ms maximum |
| Input | |
| Input frequency | 50 Hz +/- 1 Hz, 60 Hz +/- 1 Hz |
| Input voltage range for main operations | 156 – 300 Adjustable, 176 – 294V |
| Batteries & Runtime | |
| Typical recharge time | 8hour(s) |
| Nominal Battery Voltage | 24 V |
| Replacement Battery | APCRBC124 |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 23 Watts |
| Communications & Management | |
| Interface Port(s) | Optional Simple Signalling RS232 cable, USB |
| Control panel | Multifunction LCD status and control console |
| Surge Protection and Filtering | |
| Surge energy rating | 441Joules |
| Data Line Protection | RJ11 modem/fax/DSL protection (two wire single line), RJ45 modem/fax/DSL protection (four wire dual line) |
| Physical | Maximum Height
301MM, 30.1CM Maximum Width 112MM, 11.2CM Maximum Depth 382MM, 38.2CM Net Weight 13.0KG |

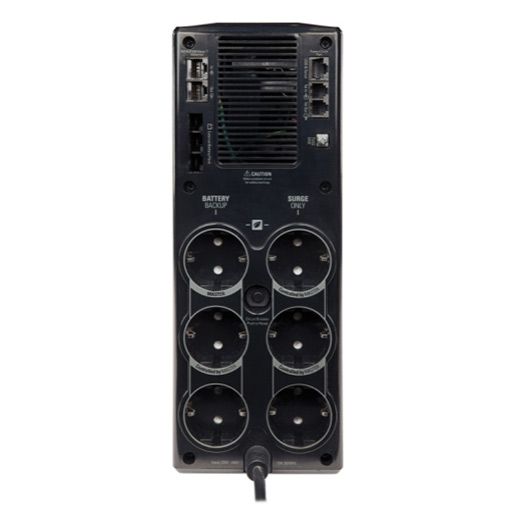

APC Power-Saving Back-UPS Pro 1500, 1500VA, 230V, LCD, 6 Schuko CEE 7 outlets
Adjustable voltage sensitivity Adjustable voltage-transfer points Audible alarms Automatic self-test Automatic Voltage Regulation (AVR) Battery failure notifica
Order now & Get it delivered Tomorrow!!
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. Audible alarms Provides notification of changing utility power and UPS power conditions Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Battery replacement without tools Enables fast battery replacement, lowering Mean Time to Repair (MTTR). Battery-protected and surge-only outlets Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models). Building Wiring Fault Indicator This LED informs users of potentially dangerous wiring problems in the wall circuit. Cold-start capable Provides temporary battery power when the utility power is out. Dataline surge protection Provides protection of connected equipment from power surges on the data lines. Disconnected battery notification Warns when a battery is not available to provide backup power. Extendable Run Time Meet long run-time needs. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. LCD display Provides schematic overview of critical data for guided operation and troubleshooting on color LCD touch-screen. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. Power-saving outlets Automatically cuts power to idle equipment to conserve electricity. Resettable circuit breaker Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs) Safety-agency approved The UPS is UL1778 Listed Serial connectivity Provides management of the UPS via a serial port. Telephone dataline surge protection Provides protection of connected equipment from power surges traveling on telephone lines. Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles. USB connectivity Provides management of the UPS via a USB port (not available on all models). User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
