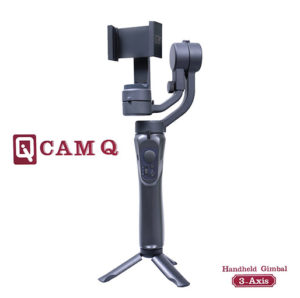

CamQ H4 3 Axis Handheld Gimbal

3-Axis Handheld Gimbal, the electric stabilizer for taking photo or taking video .You can easily make stable video or clear photo by yourself

Product Display

1. Smartphone Bracket: Hold smartphone steadily. Compatible with phone/action camera of 110-230g

weight, 60-75mm width.

2. Pan Motor: 320° rotation, responsible for the left and right stabilization of the picture. 5. Mode switching: Locked mode (The camera always faces the fixed direction); Half-follow mode (Turn left or right correspondingly with handle): Full-follow mode (The camera follows the direction

3. Charging indicator. When charging, red light always on. Fully charged, green light always on.

4. Joystick: Adjust the shooting angle up, down, left or right according to the pushing direction,

of handle freely rotation)

6. 1/4 Threaded Hole: Tripod bracket interface. 7. Shooting Mode: Connect Bluetooth after Gimbal power on, then click it to control

video. 2 Double-press the stabilizer returns to the initial setting.

picture shooting and

8. Power ON/OFF: Long press 3 seconds to power on. Long press 3 seconds to power off

9. Working status indicator :

Power on/off: Red light flashing.

All/Half/None Locked: Green light always/Slowly/fast flashing.

Low voltage: Red light flashing.

10. Tilt Motor: 320″ rotation, responsible for the up and down stabilization of the

11. Balance adjustment arm: Responsible for balancing the horizontal direction

12. Balance Knob: Balance bracket position fixed knob.

13, Roll Motor: handle.180 rotation, Responsible for holding the mobile phone to a vertical position with the

14. Bracket locking knob: Lock mobile phone bracket. 15. Micro-USB Charging Port: Insert Micro-USB cable to charge the stabilizer.

Balance Adjustment
Adjustment methods: Load your phone before loose balance knob and move the balance adjustment arm. The tilt is balance if the mobile phone remains level when released, then tight

the balance knob. Notice: Balance adjustment of mobile phone can make stabilizer work more energy-saving. When the balance deviation of mobile phone is large the stabilizer can still work, but motor will consume too much electricity. At the same time, the torsion used to enhance stability also decreases
Product Usage

1. Charge 4 hours to the stabilizer via USB port before use.

2. Refer to the previous mobile phone loading / unloading and adjust the balance 3. Press and hold 3 seconds, green light display after turn on successfully 4. Open Bluetooth and search “GP H4″ to connect, open mobile camera and press the Shooting Mode button to take pictures/videos.

Notice. Please be sure to load the phone before starting the stabilizer

2. Samsung Mobile Phone shooting mode Settings Turn on the cell phone camera, click on the Gear Setting Icon Set Press the Volume Key” to Photo/Camera, then pres the Shooting Mode key of the state to take pictures/videos

Locked Mode: All 3 axes are locked (TILT,ROLL and PAN). The camera stays still and stable. You may control TILT and PAN motors by using the joystick (press up/down/ and left/right) Half-follow mode: TILT and ROLL motors are locked. The smartphone pans left and right. You may control TILT motor by using the Joystick (press up/down)

3Full-follow mode: Roll Motor is locked. The smartphone pans left/right and tilts up/down. 7. At locked axis, the direction of camera faced can be fastly adjusted by hand.
