Hardware Parameters | |
CPU frequency | 1000MHz (1GHz) |
Memory | 64MB 16-bit DDR2 SDRAM |
Flash | 8MB |
Wi-Fi | 2T2R 2.4GHz 802.11b/g/n 300Mbps 2T2R 5.8GHz 802.11AC, 867Mbps |
Device Interfaces | 1 x LTE Interface 4 x RJ45 10M/100M/1000M LAN Ethernet Interfaces 1 x RJ45 10M/100M/1000M WAN Ethernet Interfaces 1 x Reset Button 1 x WPS Button 1 x Power Jack 1 x Power Switch 1 x USB 2.0 2FF SIM card: standard 6 PIN SIM card interface |
Wi-Fi Antenna | 2 x 5dBi external dual-band antenna (2.4GHz and 5GHz with Antenna Combiner |
LTE Antenna | 2 x 5dBi external antenna |
LTE Support Bands | |
DWR-M960 | WCDMA: B1/5/8 FDD LTE: B1/B3/B5/B7/B8/B20 GSM: 850/900/1800/1900 TDD LTE: B38/B40/B41 |
NOTES: | Other bands which are not listed in this file, users can confirm with us |
Wi-Fi Features | |
Standards | 802.11b/g/n/ac 11N: 2.4~2.4835GHz 11AC: 5.150~5.825GHZ Korea, Japan, ETSI, FCC channels can be selected |
Modulation Schemes | OFDM = BPSK, QPSK, 16-QAM, 64-QAM 256-QAMc DSSS = DBPSK, DQPSK, CCK |
Transfer Rate | HT20: up to 144 Mbps HT40: up to 300 Mbps VHT80: up to 867 Mbps |
Environment Requirement | |
Storage Temperature | -20°C ~ 90°C |
Operating Temperature | 0°C ~ 40°C |
Operating Humidity | 5% ~ 95% (typical) |
Power Supply | 12V/1.5A |
EMC / Safety | |
Safety Regulations | UL |
Regulation Compliance | CCC CE FCC |
Green Standard | RoHS |
D-Link, Network, Networking Devices, Routers

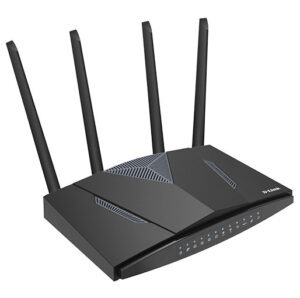

D- Link DWR-M960 4G AC1200 LTE Router
Availability:
Out of stock
- Fast Mobile Internet
- Secure Wired and Wireless Connections
- Easy to Set Up and Use
QAR 449
Out of stock

Order now & Get it delivered Tomorrow!!
