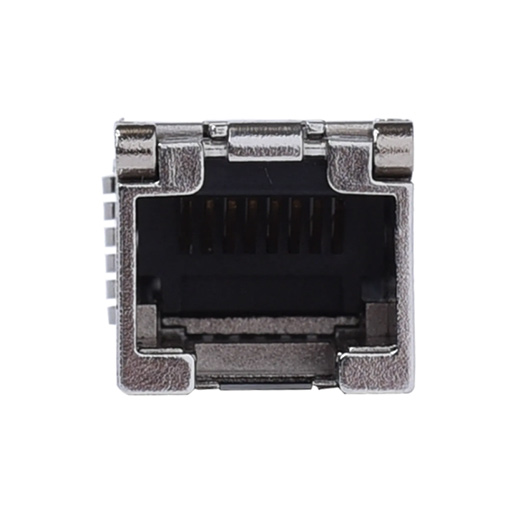

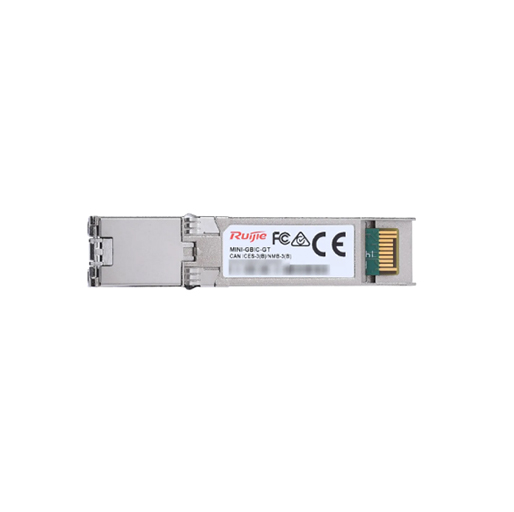

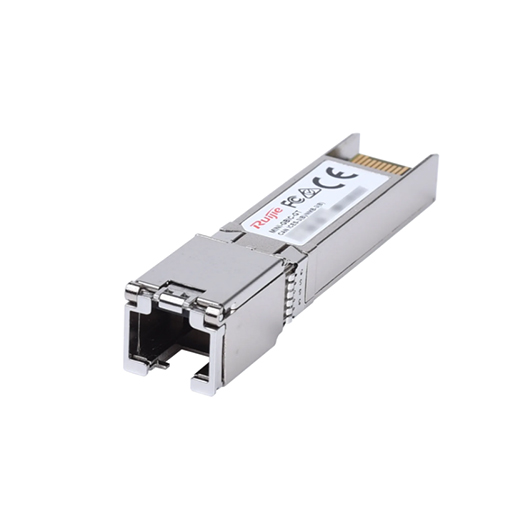

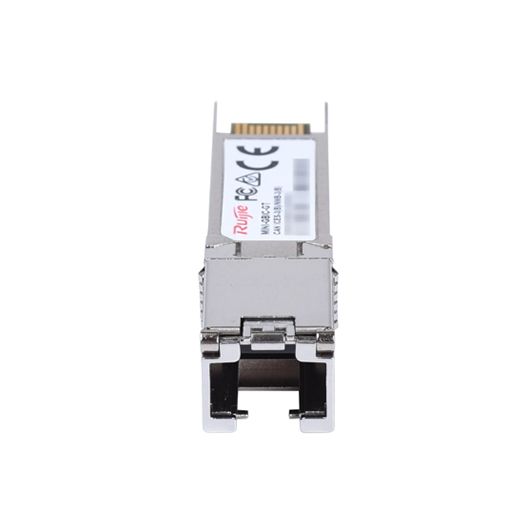

Mini-GBIC-GT 1000BASE-T SFP Copper RJ45 100-m Transceiver Module
- High-speed data transmission of up to 1.25Gbps
- Maximum transmission distance of up to 100 meters
- Hot-pluggable feature allows for easy installation or removal without disrupting the network
- Compatible with various networking equipment, making it a versatile choice for different setups
- Conforming to IEEE 802.3ab, SFP+ MSA, and RoHS standards
QAR 279
Order now & Get it delivered Tomorrow!!
| Model | MINI-GBIC-SX-MM850 | MINI-GBIC-LX-SM1310 | MINI-GBIC-LH40-SM1310 | MINI-GBIC-ZX80-SM1550 | MINI-GBIC-GT |
| Data rate | 1.25 Gbps | 1000base-X to 1000base-T | |||
| Form factor | SFP | ||||
| Connector type | Duplex LC | Duplex LC | Duplex LC | Duplex LC | RJ45 |
| Cable type | MMF | SMF | SMF | SMF | Cat 5e/6/6a |
| Fiber end face finish type | Ultra Physical Contact (UPC) | N/A | |||
| Transmitter type | VCSEL | DFB | DFB | DFB | N/A |
| Receiver type | PIN | N/A | |||
| Reach | 550 m (1,804.46 ft.) | 10 km (32,808.40 ft.) | 40 km (131,233.60 ft.) | 80Â km (262,467.19 ft.) | 100 m (328.08 ft.) |
| Bit error ratio (BER) | 1.00E-12 | N/A | |||
| Data diagnosis-capable (DDM/DOM) | Yes | No | |||
| Power consumption | ≤ 1.5 W | ||||
| Transmitter Optical Parameters | |||||
| Wavelength (nm) | 850 | 1310 | 1310 | 1550 | N/A |
| Max. transmit power (AVG) | 0 dBm | –3 dBm | 0 dBm | 5 dBm | N/A |
| Min. transmit power (AVG) | –9.5 dBm | –11 dBm | –5 dBm | 0 dBm | N/A |
| Min. extinction ratio | ≥ 9 dB | N/A | |||
| Receiver Optical Parameters | |||||
| Receive sensitivity (OMA) | < –17 dBm | < –19 dBm | < –23 dBm | < –27 dBm | N/A |
| Overload optical power (AVG) | 0 dBm | –3 dBm | –3 dBm | –3 dBm | N/A |
| Environment and Reliability | |||||
| Operating temperature | 0°C to 70°C (32°F to 158°F) | ||||
| Operating humidity | 10% RH to 90% RH | ||||
| Storage temperature | –40°C to +85°C (–40°F to +185°F) | ||||
| Storage humidity | 10% RH to 90% RH | ||||
| Dimensions and Weight | |||||
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.) | 68 mm x 14 mm x 8.5 mm (2.68 in. x 0.55 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | ||
| Weight | 35 g (0.08 lbs.) | ||||
As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 1G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).
The MINI-GBIC-GT is an IEEE 1000base-X to 1000base-T media converter and supports a link length of up to 100 meters over a Cat 5e/6/6a cable with an RJ45 connector. It adopts the SFP form factor. The port needs to be conffgured with auto-negotiation. The transceiver conforms to IEEE 802.3ab, SFP+ MSA, and RoHS standards.
