MSI MEG Z490 UNIFY LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard 911-7C71-013

Availability:

Out of stock

SKU: MB-MSI-MEG-Z490-UNIFY

Categories: , , , , ,
Add to Wishlist
  • Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket.
  • Supports DDR4 Memory, up to 4800(OC) MHz.
  • Support Lightning Gen 4 Solution for the future
  • INTERSIL digital PWM, 16+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
  • Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
  • Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.

QAR 1,199

Chat with us to know if this product can be arranged
(Price subject to variation)

Out of stock

Order now & Get it delivered Today!!

BrandMSI
ModelMEG Z490 UNIFY
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
ChipsetIntel Z490
Number of Memory Slots4×288pin
Memory StandardSupports 1R 2933/ 2666/ 2133 MHz

1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz

Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x163 x PCIe 3.0 x16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
PCI Express x12 x PCIe x1 slots (from PCH)
SATA 6Gb/s6 x SATA 6Gb/s ports
M.2SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

3 x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices
M2_3 supports up to PCIe 3.0 x4, 2242/2260/2280 storage devices

Intel Optane ReadyIntel Optane Memory Ready
Audio ChipsetRealtek ALC1220
Audio Channels7.1-Channel High Definition Audio
Supports Optical S/PDIF output
LAN ChipsetRealtek RTL8125B
Max LAN Speed10/100/1000/2500Mbps
Wireless LANIntel AX201
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
The Wireless module is pre-install in the M2 (Key-E) slot
BluetoothSupports Bluetooth 5.1, FIPS, FISMA

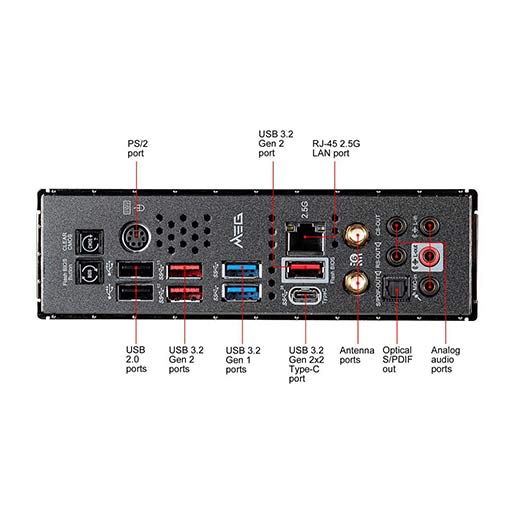

Back I/O Ports1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2×2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A / 5 x Audio Jacks
Onboard USB1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump connector
6 x 4-pin system fan connectors
1 x front panel audio connector
2 x system panel connectors
1 x Chassis Intrusion connector
1 x slow mode jumper
1 x power button
1 x reset button
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
1 x 3-pin CORSAIR LED connector
1 x RTD3 connector
1 x TBT connector
Thunderbolt card need support RTD3
Form FactorATX
LED LightingRGB
Dimensions (W x L)304.80 mm x 243.84 mm
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
