Brand | Ricoh |
Configuration | Console |
Printing Process | 4-Drum Method |

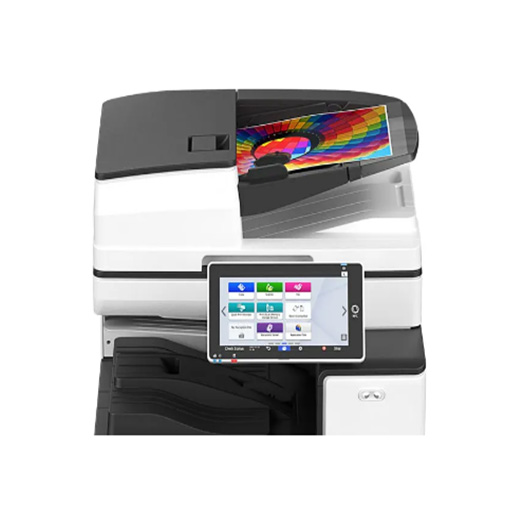

Control Panel | 10.1″ Smart Operation Panel |
Color/Black & White | Color |
Output Speed Copy/Print | 45 Ppm B&W & Fc (Ltr) |
First Page Out Time | 3.6 Seconds B&W 5.4 Seconds Color |
Warm-Up Time | 21 Seconds |
Resolution | 600 Dpi |
System Memory | 2 Gb Ram/320 Gb Hdd Standard & 4 Gb Ram/320 Gb Hdd Option |
Maximum Copy Quantity | Up To 999 Copies |
Duplexing | Automatic (Standard) |
Document Feeder Type | Single Pass Document Feeder (Spdf) |
Single Pass Document Feeder (Spdf) | Original Capacity: 220 Sheets Original Size: 5.5″ X 8.5″ – 11″ X 17″ (A5-A3) Paper Weight: Simplex: 11 – 34 Lb. Bond (40 – 128 G/M2) Duplex: 14 -34 Lb. Bond (52 – 128 G/M2) |
Zoom Range | 25% – 400% In 1% Increments |
Supported Paper Sizes | 1st Paper Tray: 8.5″ X 11″ (A4) 2nd Paper Tray: 5.5″ X 8.5″ – 12″ X 18″ (Sra3, A3-A6, B4-B6), Envelopes Bypass: Up To 12″ X 18″, Envelopes Custom Sizes: Width: 3.5″ – 12.6″ (90 – 320 Mm), Length: 5.8″ – 49.6″ (148 – 1260 Mm) |
Supported Paper Weights | Standard Trays: 16 – 80 Lb. Bond/166 Lb. Index (60 – 300 G/M2) Bypass Tray: 14 – 80 Lb. Bond/166 Lb. Index (52 – 300 G/M2) Duplex Unit: 14 -68 Lb. Bond/142 Lb. Index (52 – 256 G/M2) |
Supported Paper Types | Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-Printed, Bond, Coated, Envelope, Label, Ohp, Gloss |
Standard Paper Capacity | 1,200 Sheets (2 X 550 Sheets + 100-Sheet Bypass Tray) |
Maximum Paper Capacity | 4,700 Sheets (W/Tandem Lct + Side Lct) |
Standard Output Capacity | 500 Sheets 8.5″ X 11″ (A4) Or Smaller; 250 Sheets (B4) Or Larger |
Maximum Output Capacity | 3,625 Sheets |
Maximum Monthly Volume | 50000 |
Power Source | 120v – 127v, 60hz |
Typical Electricity Consumption (Tec) | 0.512 Kwh/Week Tec Value Is Measured Based On The Energy Star Ver.3.0 Test Method. |
Power Consumption | Less Than 1,584 W; Sleep Mode: 0.59w |
Epeat Status | Gold |
Dimensions W X D X H | 23.0″ X 27.0″ X 37.9″ (587 Mm X 685 Mm X 963 Mm) |
Weight | 223.5 Lbs/101.4 Kg |
Processor Speed | Intel Apollo Lake 1.6 Ghz |
Interfaces | Standard: Ethernet 10 Base-T/100 Base-Tx/1000 Base-T, Usb Host I/F Type A, Usb Device I/F Type B Option: Wireless Lan (Ieee 802.11a/B/G/N), Additional Nic (2nd Port) |
Network Protocol | Tcp/Ip (Ipv4, Ipv6) |
Supported Operating Systems | Windows® V7/8.1/10/Server 2008/Server 2008r2/ Server2012/ Server2012r2/Server 2016; Unix: Sun Solaris, Hp-Ux, Sco Openserver, Redhat Linux, Ibm Aix, Mac Os X V.10.11 Or Later, Sap R/3, Sap S/4, Ibm Iseries As/400-Using Os/400 Host Print Transform |
Device Management Utilities | Device Manager Nx Series, Web Image Monitor, @Remote |
Printer Languages | Standard: Pcl5c, Pcl6, Postscript®3™ Emulation, Pdf Direct Print Emulation Optional: Genuine Adobe® Postscript®3™, Adobe® Pdf Direct Print |
Font Support | Standard: Pcl: 45 Roman Fonts + 13 International Fonts Postscript®3™ Emulation: 80 Roman Fonts + 13 International Fonts Optional: Genuine Adobe® Postscript®3™: 136 Roman Fonts |
Print Resolution | Up To 1200 X 1200 Dpi |
Mobile Printing Support | Apple Airprintâ„¢, Mopria, Google Cloud Print, Nfc, Ricoh Smart Device Connector |
Security Features | Dataoverwritesecurity System (Doss), Hdd Encryption, User Codes, Snmp V3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed Pdf, And More |
Scan Speed (B&W & Full Color) | 120 Ipm (Simplex)/240 Ipm (Duplex) |
Scanning Resolution | Up To 1200 Dpi |
Scan Area | 11.7″ X 17″ (297 – 432 Mm) |
File Formats | Single Page: Tiff, Jpeg, Pdf, Pdf/A, High Compression Pdf, Encryption Pdf, Ocr* Multi Page: Tiff, Pdf (Default), Pdf/A, High Compression Pdf, Encryption Pdf, Ocr* |
Scan Modes | E-Mail, Folder, Usb, Sd Card |
Footnotes | *Requires Optional Ocr Unit Type M13 |
Maximum Stored Documents | 3000 |
Maximum Pages/Document | 2000 |
Maximum Page Capacity | 9000 |
Max Number Of Folders | 200 |
Fax Standard/Optional | Optional |
Type | Itu-T (Ccitt) G3 |
Circuit | Pstn, Pbx |
Fax Resolution | Standard: 8 X 3.85 Line/Mm, 200 X 100 Dpi Optional: 16 X 15.4 Line/Mm, 400 X 400 Dpi |
Compression Method | Mh, Mr, Mmr, Jbig |
Scanning Speed | 81 Spm (A4/Lt Lef Image Rotation) |
Modem Speed | 33.6 Kbps |
Transmission Speed | 2 Seconds (200 X 100 Dpi, Jbig, Itut #1 Chart Tti Off, Memory Transmission) |
Memory | Standard: 4 Mb (Approx. 320 Pages) Optional: 60 Mb (Approx. 4,800 Pages) With Optional Saf Memory |
Max Auto Dials | 2,000 Quick/Speed Dial Numbers |
Group Dials | 100 Group Dial Numbers |
