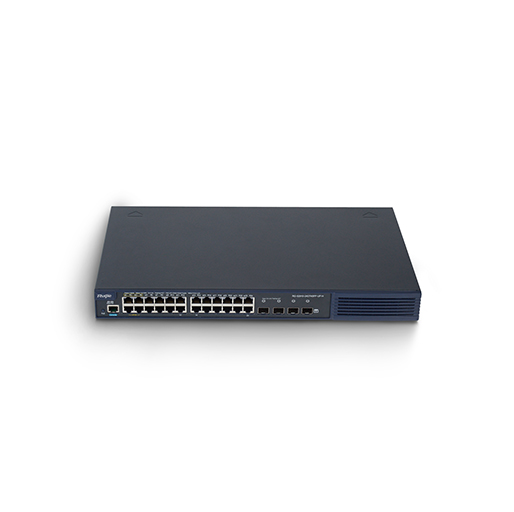

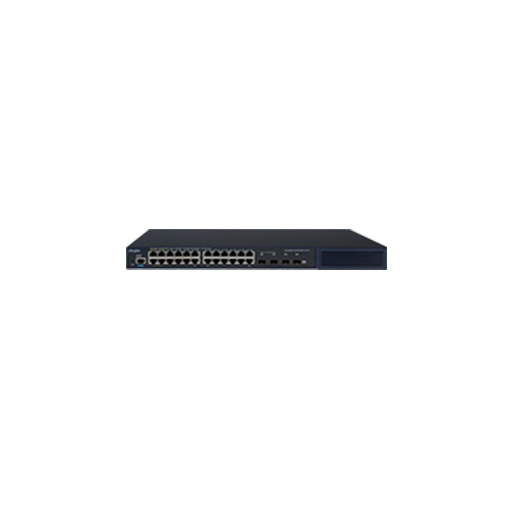

Ruijie RG-S2910-24GT4SFP-UP-H(V3.0), 24-Port Gigabit L2+ Managed POE Switch
Ruijie RG-S2910-24GT4SFP-UP-H(V3.0), 24-Port Gigabit L2+ Managed POE Switch
, ,

Ruijie RG-S2910-24GT4SFP-UP-H(V3.0), 24-Port Gigabit L2+ Managed POE Switch

SKU: RG-S2910-24GT4SFP-UP-H(V3.0)

Categories: , ,
Add to Wishlist
  • High-power remote power supply, allowing energy to pass through the network.
  • Network cable and wire in one, simple deployment.
  • From equipment to power supply to network, the three-dimensional integration ensures security and stability.
  • Remote restart for easy O&M.

QAR 2,609

Order By Whatsapp Order By Call

Order now & Get it delivered Today!!

Hardware SpecificationsRG-S2910-24GT4SFP-UP-H(V3.0)RG-S2910-24GT4XS-UP-H(V3.0)
Ports
Fixed service port24 x 10/100/1000M electrical ports supporting auto negotiation + 4 x 1GE SFP ports24 x 10/100/1000M electrical ports supporting auto negotiation + 4 x 10GE/1GE SFP+ ports
System
Switching capacityUp to 256GbpsUp to 256Gbps
Packet forwarding rate42Mpps/96MppsUp to 96Mpps
Dimensions and Weight
Dimensions (W x D x H)440 mm x 260 mm x 44 mm (17.32 in. x 10.24 in. x 1.73 in.)440 mm x 260 mm x 44 mm (17.32 in. x 10.24 in. x 1.73 in.)
Power Supply and Consumption
Rated input voltageAC input: rated voltage range 100 V to 240 V, frequency 50/60 Hz
Maximum input voltageAC input: rated voltage range 90 V to 264 V, frequency 50/60 Hz
Input voltageHigh voltage DC (HVDC) input: input voltage range 192 V to 290 V
PoE power supply24 x electrical ports supporting PoE and PoE+24 x electrical ports supporting PoE and PoE+
Maximum output power of a PoE interfaceMaximum PoE/PoE+ output power: 370 WMaximum PoE/PoE+ output power: 370 W
Environment and Reliability
Fan monitoringFan speed adjustment and fault alarms
Operating temperature0°C to 50°C (32°F to 122°F)
Storage temperature–40°C to +70°C (–40°F to +158°F)
Operating humidity10% to 90% RH
Storage humidity5% to 95% RH
Operating altitude–500 m to +5000 m (–1640.42 ft to +16404.20 ft)

Software Specifications

Software SpecificationsRG-S2910-24GT4SFP-UP-H(V3.0)RG-S2910-24GT4XS-UP-H(V3.0)
VLAN4K VLANs

Interface-based VLAN assignment

MAC address-based VLAN assignment

Protocol-based VLAN assignment

Private VLAN

Voice VLAN

IP subnet-based VLAN

GVRP

QinQBasic QinQ

Selective QinQ

ACLStandard IP ACL

Extended IP ACL

Extended MAC ACL (hardware ACL based on the source MAC address, destination MAC address, and optional Ethernet type)

Time range-based ACL

Expert-level ACL (hardware ACL based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time range)

ACL 80

IPv6 ACL

Global ACL

ACL redirection

QoSRate limiting on an interface based on the ingress or egress

Flow-based rate limiting on the ingress or egress

802.1p/DSCP/ToS traffic classification

Eight priority queues per interface

SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR, and RED/WRED scheduling

MirroringCommon service interfaces and aggregate interfaces that can be configured as source and destination interfaces of mirroring

1:1, 1:N, N:1, and flow-based local and remote mirroring

RSPAN and ERSPAN

Cross-device traffic mirroring

DHCPDHCP server

DHCP client

DHCP snooping

DHCP relay

IPv6 DHCP snooping

IPv6 DHCP client

IPv6 DHCP relay

Layer 2 protocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.1Q (GVRP), IEEE 802.1d, IEEE 802.1w, IEEE 802.1s IEEE 802.1s, and IGMP snooping v1/v2
Security3-tuple binding (IP address, MAC address, and interface)

3-tuple binding (IPv6 address, MAC address, and interface)

Invalid MAC address filtering

Interface- and MAC address-based 802.1X authentication

MAC address bypass authentication (MAB)

Portal and Portal 2.0 authentication

ARP check

DAI

Trusted ARP

ARP spoofing prevention

Broadcast or multicast storm suppression

Unknown multicast suppression and multicast bandwidth suppression

Hierarchical management and password protection

RADIUS and TACAS+

AAA (IPv4/IPv6) for device login management

SSH and SSHv2.0

BPDU guard

IP source guard

CPP and NFPP

Port protection

Cable diagnosticsCable detection
Energy Efficient Ethernet (EEE)IEEE 802.3az-compliant EEE: When EEE is enabled, power consumption of interfaces is significantly reduced.
Port sleepingPort sleeping
PoEIEEE 802.3af, IEEE 802.3at,

Automatic and energy-efficient power supply management modes

Warm start to implement uninterrupted power supply

Interface priority

Compatibility with non-standard PDs

Scheduled power-on/off of PoE interfaces

IP routingIPv4/ IPv6 static route

RIP, RIPng, OSPFv2, and OSPFv3

Routing policy

IPv6

Basic protocols

IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 ping, and IPv6 tracert
VSU featuresVSU

Local and remote stacking

Cross-chassis link bundling within the stack

Not supported
Zero Touch Provisioning (ZTP)CWMP (TR-069) standard protocol
Management featuresSNMP, CLI (Telnet/console), RMON, SSH, Syslog/debugging, NTP/SNTP, FTP, TFTP, web, and sFlow

Ruijie RG-S2910-H High Power over Ethernet (HPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 60W power output per port. The HPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.The HPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Wi-Fi hotspot application in outdoor venue.
