TP-Link Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router

Availability:

Out of stock

SKU: TL-AX1800
MFR SKU: TL-AX1800
Categories: , , , ,

  • Dual-Band Wi-Fi 6: Wi-Fi 6 technology achieves faster speeds, greater capacity and reduced network congestion compared to the previous generation.
  • Next-Gen 1.8 Gbps Speeds: Enjoy smoother and more stable streaming, gaming, downloading and more with WiFi speeds up to 1.8 Gbps (1200 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band).
  • Connect More Devices:  Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag for ultra-responsive entertainment.
  • Quad-Core Processing: The powerful 1.5 GHz quad-core CPU ensures communications between your router and connected devices are smooth.

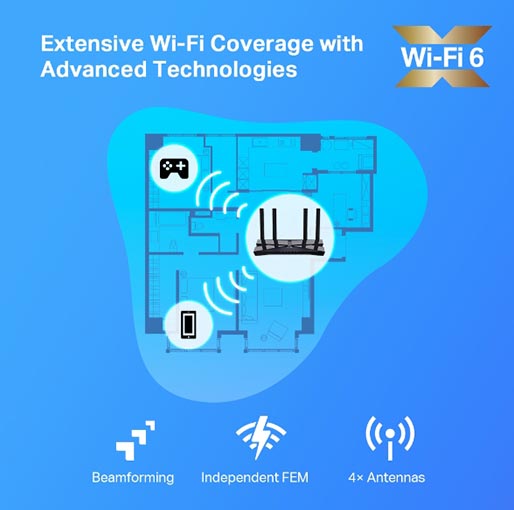

  • Extensive Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX1800 as it focuses signal strength to your devices far away using Beamforming technology, 4 antennas and an advanced front-end module (FEM) chipset.
  • Increased Battery Life for Devices: Target Wake Time technology reduces your devices’ power consumption to extend their battery life.
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
  • Backward Compatible: Archer AX20 supports all previous 802.11 standards and all WiFi devices

QAR 349

Out of stock

Order now & Get it delivered Today!!

Wireless
StandardsWi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi SpeedsAX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range3 Bedroom Houses

Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

WiFi CapacityHigh

Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth

Working ModesRouter Mode
Access Point Mode
Hardware
Processor1.5 GHz Quad-Core CPU

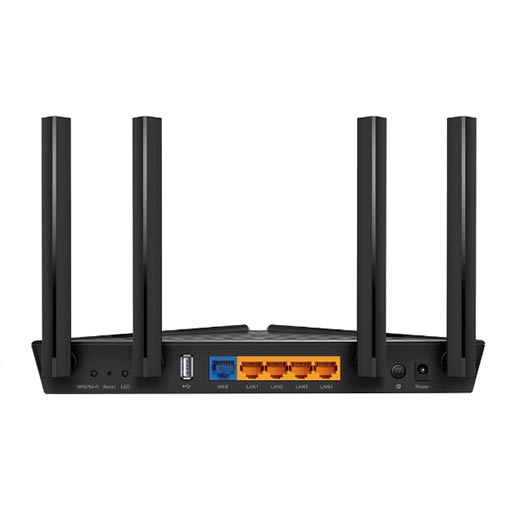

Ethernet Ports1× Gigabit WAN Port
4× Gigabit LAN Ports
USB Support1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

ButtonsWPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button
Power12 V ⎓ 1.5 A
Security
WiFi EncryptionWPA
WPA2
WPA3
Network SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN ServerOpenVPN
PPTP
Software
ProtocolsIPv4
IPv6
OneMesh™V1.0 only
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental ControlsURL Filtering
Time Controls
WAN TypesDynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of ServiceQoS by Device
Cloud ServiceAuto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT ForwardingPort Forwarding
Port Triggering
DMZ
UPnP
IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCPAddress Reservation
DHCP Client List
Server
DDNSTP-Link
NO-IP
DynDNS
ManagementTether App
Webpage
Physical
Dimensions (W×D×H)10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package ContentsWi-Fi Router Archer AX20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Other
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

CertificationsFCC
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Test Data
WiFi Transmission PowerFCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
