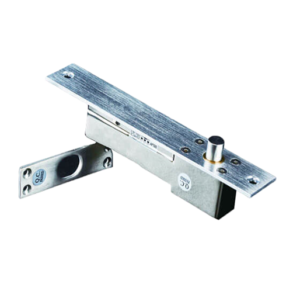

ZKTeco Electric bolt lock-LB-35
- Electronically controlled mortise lock for secure access.
- Integrates into the door, activating a bolt with electrical impulses.
- Automatically unlocks when the power is off for convenience and safety.
Order now & Get it delivered Today!!
| Brand | ZKTeco |
| Power Supply | DC 10V to 24V |
| Wiring | 5 wire Red: + Black: – Yellow: Exit button (work with Black) White: Door sensor, COM Blue: Door sensor, NO |
| Lock Delay | 0s,3s,or 6s (adjustable) |
| Unlock Delay | 6s (automatically locks the door again when no one pushes the door within 6s after unlocking) |
| Door Sensor | Supports |
| Lock Cylinder | SUS304 Stainless Steel |
| Installation Hole Size | 207 * 36 (mm) (The depth of the inner pit is not less than 38mm) (L*W) |
| Decorative Panel Size | 215 * 41 * 0.7 (mm) (L*W*H) |
| Lock Panel Size | 205 * 35 * 3 (mm) (L*W*H) |
| Gross Weight | 0.719kg |
The electric mortise lock is electronically controlled. A mortise lock is a mechanism that sits inside the door. Wiring electricity into the mechanical system uses an electrical impulse from the wiring to stick out a bolt into the door frame to lock the door. When the power is off, the clip will retract, and unlock the door.
