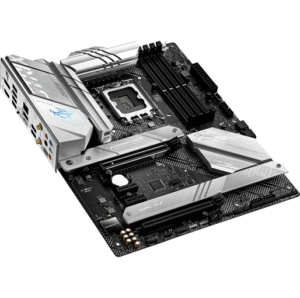

ASUS ROG Strix B660-A Gaming WIFI Motherboard
Availability:
Out of stock
- Intel®LGA 1700 Socket: Ready for 12thGen Intel Core™, Pentium® Gold and Celeron® processors
- Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-grade alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design:Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
- High-performance Networking:Onboard Intel® WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI®1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
- Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: 2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Q-LED
- Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with a Savitech SV3H712 amplifier, along with DTS®Sound Unbound™ and Sonic Studio III
- Renowned Software:Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard
QAR 1,049
Out of stock
Order now & Get it delivered Today!!
| shape factor | ATX |
| Socket | Intel 1700 |
| chipset | Intel B660 |
| CPU-Compatibility | Core i-12000, Pentium Gold G7000, Celeron G6000 |
| RAM | 4x DDR5 DIMM, dual PC5-48000U/DDR5-6000 (OC), max. 128GB (UDIMM) |
| Extension slots | 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x2, 2280/2260/2242) |
| external connectors | 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s, B660), 1x USB-A 3.1 (10Gb/s, B660), 1x USB-C 3.0 (5Gb/s, B660), 2x USB-A 3.0 (5Gb/s, B660), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Intel I225-V), 5x jack |
| Internal connectors | 1x USB-C 3.1 Key-A Header (10Gb/s, B660), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0, B660), 2x USB 2.0 header (480Mb/s, 3x USB 2.0), 4x SATA 6Gb/s (B660), 1x Thunderbolt-Header 13-Pin, 1x TPM-Header, 1x S/PDIF-Header, 1x Chassis Intrusion-Header, 1x COM Debug-Header |
| Header Cooling | 2x CPU fan 4-Pin, 3x fan 4-Pin, 1x AIO-pump 4-Pin, 1x Thermal-sensor |
| Header Lighting | 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2) |
| buttons/Switches | USB BIOS Flashback (external) |
| Audio | 7.1 (Realtek ALC4080/ASUS SupremeFX), AMP (Savitech SV3H712), DTS Sound Unbound |
| Graphics | iGPU |
| Wireless | Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2×2), Bluetooth 5.2 |
| RAID level | 0/1/5/10 (B660) |
| Multi-GPU | not available |
| Power connections | 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V |
| VRM | 13 virtual phases (12+1), 7 real phases (6+1), PWM-Controller: ASP2100 (RT3628AE, max. 9 phases) |
| MOSFETs CPU | 12x 55A AOZ5316NQI |
| MOSFETs SoC | 1x 60A SiC643 |
| Lighting | RGB, 1 zone (I/O cover) |
| BIOS | 1x 24MB (192Mb) |
| Special features | audio+solid capacitors, Diagnostic LED (LED indicators), I/O-shield integrated, 3x M.2-passive cooler, onboard TPM 2.0 support (Intel PTT) |
| Warranty | three years (handling by merchant) |
| Note | Compatible with socket 115x/1200-cooler. Durch Unterschiede the Z-height (stack-Up-Height), reduced sich however the contact pressure and therewith the cooling capacity. |
