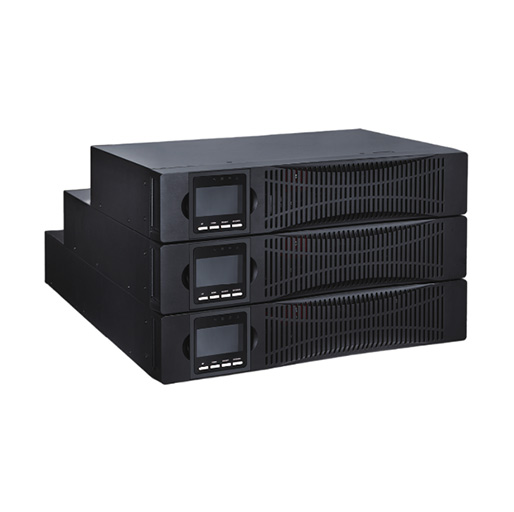

KStar 2KVA Rack-Type Online UPS MP RT 2K S
Out of stock
- Brand:KStar
- Colour:Black
QAR 1,749
Out of stock
Order now & Get it delivered Today!!
| INPUT | ||
| Nominal voltage | 208/220/230/240Vac | |
| Input voltage range | 110~300Vac (176~280Vac @ 100% load) | |
| Frequency range | 40~70Hz (50/60Hz Auto-Sensing) | |
| Power factor | ≥0.99 | |
| OUTPUT | ||
| Output voltage | 208/220/230/240Vac | |
| Power factor | 0.9 | |
| Voltage regulation | ±1% | |
| Output frequency | Line Mode | 46~54Hz or 56~64Hz |
| Bat. Mode | (50/60±0.1%)Hz | |
| Crest factor | 3:01 | |
| Harmonic distortion (THDv) | ≤3% Linear load | |
| ≤5% Non linear load | ||
| Transfer time | AC mode to Bat.Mode | 0ms |
| Inverter to Bypass | 4ms (Typical) | |
| Output waveform | Pure Sinewave | |
| INDICATORS | ||
| LED display | Line mode,Bat.mode,ECO mode,Bypass mode,Battery low voltage,Overload & UPS fault | |
| LCD display | Input voltage,Input frequency,Output voltage,Output frequency,Load percentage, | |
| Battery voltage,Inner temperature& Remaining battery backup time | ||
| ALARM | ||
| Battery mode | Beeping every 4 seconds | |
| Battery low | Beeping every second | |
| Overload | Beeping twice every second | |
| Fault | Continously beeping | |
| ENVIRONMENT | ||
| Operating temperature | 0℃~40℃ | |
| Storage temperature | -25℃~55℃ | |
| Humidity range | 20~95%RH @ 0~40℃ (Non condensing) | |
| Altitude | <1500m,derating required when>1500m | |
| Noise level | <50db at 1 Meter | |
| STANDARDS | ||
| Safety | IEC/EN62040-1,IEC/EN62477-1 | |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 | |
■ Rack/Tower convertible design online double conversion with full digital control
■ Wide input voltage range:110~300Vac
■ Input power factor 0.99 with PFC
■ Selectable output voltage: 208/220/230/240Vac
■ Smart charger design for optimized battery performance
■ Maximum charging current can be expanded to 12A (Long run unit)
■ Emergency power-off function (EPO)
■ ECO mode operation for energy saving
■ Generator compatible
■ Hot-Swappable battery design
■ Cold start
■ Intelligent fan speed regulation
■ Load segment settable (Optional)
■ Versatile LCD human-computer interface
■ Multiple communication interfaces: RS232 (USB/EPO/Relay card/SNMP card optional)
■ Multiple protection functions: short-circuit, overload, overheat, battery overcharge and over-discharge, output low voltage and fan fault alarm
